BSD | Switches | Kawasaki | ZX10R 2021>

Make : Kawasaki

Model : ZX10R , ZX10RR

Year : 2021 Onward

Number of switch functions : 4

Position : Right side

Road or Track : Track only

Note : rain light wiring to be connected to the brake light circuit.

Mounting type : Mounts directly onto the brake master cylinder

--

This switch is is a direct 'plug n play' replacement for the standard switch assembly and may be used with the standard ECU/wiring and also the KIT system.

Rain light is connected to the brake light circuit, wiring parts are supplied as part of this product.

--

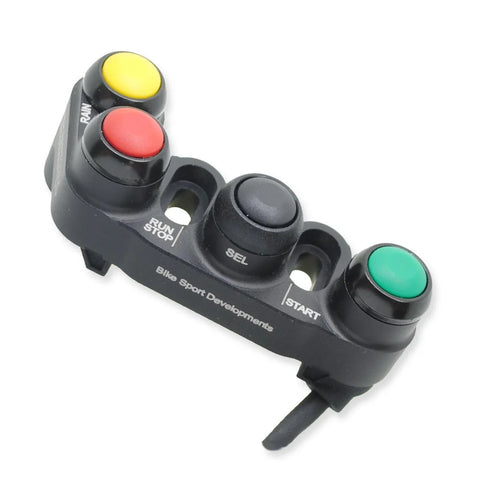

Functions :

• Stop/Run
• Start
• Select
• Rain

--

These 'Type C' switches mount directly onto the brake master cylinder using the two original clamp screws and a new dedicated clamp.

The clamp is supplied free with each switch, with the default clamp matching the bolt pattern of the standard bike, but you are free to choose an alternative clamp at the time of ordering at no extra cost.

We have brake clamps for:

BR-A    32mm in-line bolt spacing

BR-B    30mm offset bolt spacing - Brembo XR , GP

BR-N    32mm in-line with a left offset for short brake levers Nissin / Brembo RC, RCS, Costa Corta

BR-F    30mm in-line as found on Accosato / Hel components

BR-J     32mm offset bolts spacing as found on Beringer components

BR-G    Generic clamp for any 21.8 > 22.2 mm handlebar (does not mount on the brake pump)

Unless otherwise specified we will supply the BR-A clamp for this application.

Clamps may be bought separately should you change this part at a future time, there is no need to replace the switch assembly

Perfect for saving space on the handlebar and ideally suited to bikes with aftermarket brake or clutch parts, or thumb brakes.

Make : Kawasaki

Model : ZX10R , ZX10RR

Year : 2021 Onward

Number of switch functions : 4

Position : Left side

Road or Track : Track only

Mounting type : Mounts directly onto the clutch post or generic 22mm clamp

--

This switch is is a direct 'plug n play' replacement for the standard switch assembly, retaining all controls needed for a track bike but without the controls needed on a road bike.

KIT ECU / Wiring : For bikes with the KIT ECU there is an alternative 7 button product, see alternatives below.

--

Functions :

• Reset
• Up
• Right
• Down

--

These 'Type C' switches mount directly onto the clutch post using the two original clamp screws and a new dedicated clamp.

Alternatively you can use the BR-G clamp to mount directly onto the handlebar. Choose at the time of ordering via the pull down menu.

One clamp is supplied free with each switch, with the default clamp matching the bolt pattern of the standard bike, but you are free to choose an alternative clamp at the time of ordering at no extra cost.

We have clutch clamps for:

• CL-A    32mm in-line bolt spacing
• CL-B    30mm offset bolt spacing - Brembo XR , GP
• CL-F    30mm in-line as found on Accosato and Hel components
• CL-K    36mm in-line spacing as found on Kawasaki
• CL-J    32mm offset bolts spacing as found on Beringer components
• BR-G   22mm generic bar clamp

Unless otherwise specified we will supply the CL-K clamp for this application.

Clamps may be bought separately should you change the clutch at a future time, there is no need to replace the switch assembly

Perfect for saving space on the handlebar and ideally suited to bikes with aftermarket clutch parts, or thumb brakes.

Make : Kawasaki

Model : ZX10R , ZX10RR

Year : 2021 Onward

Number of switch functions : 4

Position : Left side

Road or Track : Track only

Mounting type : Mounts directly onto the clutch post or generic 22mm clamp

This switch is is a direct 'plug n play' replacement for the standard switch assembly, and specifically for bikes with the KIT ECU and wiring

--

Functions :

• EB/TC - Up
• EB/TC - Down
• Lap Set
• Reset
• Up
• Right
• Down

--

These 'Type C' switches mount directly onto the clutch post using the two original clamp screws and a new dedicated clamp.

By default we supply the BR-G clamp to mount directly onto the handlebar as this provides the greatest versatility. Choose at the time of ordering via the pull down menu.

One clamp is supplied free with each switch, with the default clamp matching the bolt pattern of the standard bike, but you are free to choose an alternative clamp at the time of ordering at no extra cost.

We have clutch clamps for:

• CL-A    32mm in-line bolt spacing
• CL-B    30mm offset bolt spacing - Brembo XR , GP
• CL-F    30mm in-line as found on Accosato and Hel components
• CL-K    36mm in-line spacing as found on Kawasaki
• CL-J    32mm offset bolts spacing as found on Beringer components
• BR-G   22mm generic bar clamp

Unless otherwise specified we will supply the BR-G generic clamp for this application.

Clamps may be bought separately should you change the clutch at a future time, there is no need to replace the switch assembly

Perfect for saving space on the handlebar and ideally suited to bikes with aftermarket clutch parts, or thumb brakes.

Construction / Notes:

• Billet aluminium body
• IP 67 waterproof switches with gold plated contacts
• Raychem type 55 wire and DR25 sleeving
• Plug and play wiring
• Greater crash protection and electrical integrity
• May be repaired after crash damage
• Custom designs are our speciality, so feel free to ask and typically at no extra cost.
• Designed and manufactured in the UK at our workshops close to Silverstone
